Wireless Two (2) Channel Remote Digital Controller
Application dossier
To Order
|
3
Miles ( 5 km )
line of sight
4600 feet
(1400m) partially obstructed
Optional extended range up to 20 Miles (32Km)
SPECIFICATIONS 937411
|
Operating Voltage: |
12
VDC |
|
Operating Temperature: |
-4° to +140° F (-20° to +60° C) |
|
Number of Codes: |
64000
codes, DIP switch programming |
|
Carrier Frequency |
27 MHz ,
16 BIT Digital |
|
Current
Transmitter |
Standby 15 µA, transmitting -2.0 Amps (1 Sec) |
|
Current Receiver |
Standby
25 mA, operation, 65 mA |
|
Data Input TX |
Dry contact |
|
Relay Output |
10 Amp max
250VAC, 30VDC, Class II pilot duty |
|
Antenna Impedance |
50
Ohms
Quarter Wave
ANTENNAS |
|
Dimensions |
400x
365 x 203 mm / 16 x 14 x 8 inch each |
|
Weight |
8
lb. (4 Kg) each |
|
Enclosure
Receiver |
NEMA 4x IP65 non
metallic waterproof |
| Compliance Power |
per FCC Part
15.249, 50mV/m @ 3m |
|
Transmitter &

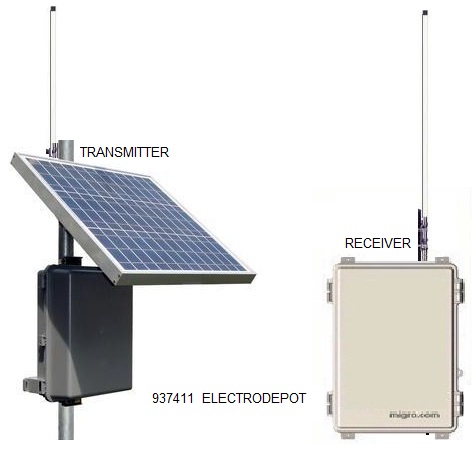

Receiver easy to install: # 937411
1 Base Transmitter dry contact input w Solar Panel, Battery &
Controller
1 Base Receiver pre-wired, With mode controller
2 Antenna 36 inch with coaxial cable & PL259 connector
2 NEMA 4x Fiber enclosure for wall or pole mount
Instructions & wiring diagram
|
| ACTION |
Transmitter
: Receiver |
|
Momentary: |
Close switch CH 1 : Turn ON,
Close switch CH 2 : Turn OFF |
|
Continuous: |
Close switch CH 1 : Turn ON,
Close switch CH 2 : Turn OFF |
|
| |
|
|
