Industrial Wireless Radio Controls
Performance
■ 1 Mile (2.km)
line-of-sight 938432 ant.
■ 3 Miles (5 km) line-of-sight 938433 ant.
■ 1200. f (300.m)
in-building range 3dbi
■ Input Dry isolated contact N/O
■ Relay output SPDT 6 Amp 240V/30V
Installation features
■ Operation license-free 433MHz ISM band
■ Easy installation,
No programming
■ Panel mount or clip onto DIN-35mm rail
|
Operation |
Transmitter |
Receiver |
|
Continuous: |
Close switch
Open switch |
Relay ON
Relay OFF |
|
■
Request form
To Order
|
|
|
|
|
|
|
■
Applications:
Industrial Monitoring,
Pump control, Monitor remote
instruments, sensors,
Lighting, Packing and mobile system,
PLC remote, SCADA,
Factory process control
Generators. Remote alarms.
Solar, Wire replacement |
|
|
|
|
|
Specifications Digital Transmitter
|
| Supply / power |
120/240VAC or
12VDC/ 7watt |
|
Inputs |
N/O Normally
Open, Dry contact |
| RF power |
per
FCC Part 15.249, 50mV/m @ 3m |
| Transmission |
Gaussian_frequency-shift_keying |
|
Channels |
16 addresses per system
|
| Connection |
Terminal screws
DIN 35mm |
| Antenna |
50 Ohm SMA Connector |
| Response |
Loop 500 msec
|
| Weight |
5.3 lb (2.40kg) each unit |
Antenna
Sold Separately
(2 required per system) |
|
Specifications Digital Receiver
|
| Supply / power |
120/240VAC or
12VDC / 5watt |
|
Outputs |
Relay contact 10A
SPDT 250VAC,
Class II pilot
duty |
| Configuration |
Digital encoded
DIP switch (factory configured) |
|
Frequency |
433 MHz •
License free Industrial ISM band |
| Carrier
mode |
Continuous supervised GFSK |
| Compliance |
FCC, CFR part 15.247 ISM |
| Ambient temp |
14° to 140° F (-10° to 60°
C) |
| Enclosure |
NEMA4, IP65 Aluminum enclosure |
| Dimensions |
11.05"W x
7.5"H x
4"D (280 x 180 x 100 mm) |
|
 |
 |
 |
 |
938433
Yagi
Antenna
12 E
14 dBi 5 Mile
Length: 43", Weight:
3.lb
With 10' Coax Cable &
RF connector
|

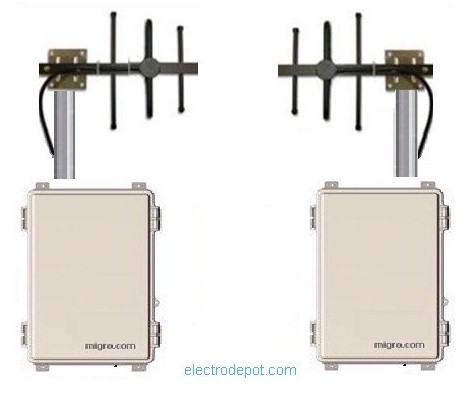

938432 Yagi Antenna 3 E
7 dBi 3 Mile
Length: 18", Weight:
1.lb
With 10' Coax Cable & RF connector
|
938438 Omni Pole
mount
3 dBi Antenna 2 Mile
Length: 37", Weight: 3.lb
With 10' Coax Cable & RF connector
|
938091
0 dBi Short range
7" Omni Antenna
With 3' Coax Cable
|
